特點
構成材料及運行條件Materials and operating conditions
| 框材 External frame | 鍍鋅板 Galvanization |
| 密封物 Sealant | 玻纖棉 Glass fiber |
| 分隔物 Separator | 鋁箔 Aluminum |
| 濾料 Filter media | 玻纖濾紙 Glass fiber |
| 使用最高溫度 Maximum operating temperature | 80℃ |
| 使用最高濕度 Maximum operating humidity | 80% |
型號尺寸及其他參數 standard specification

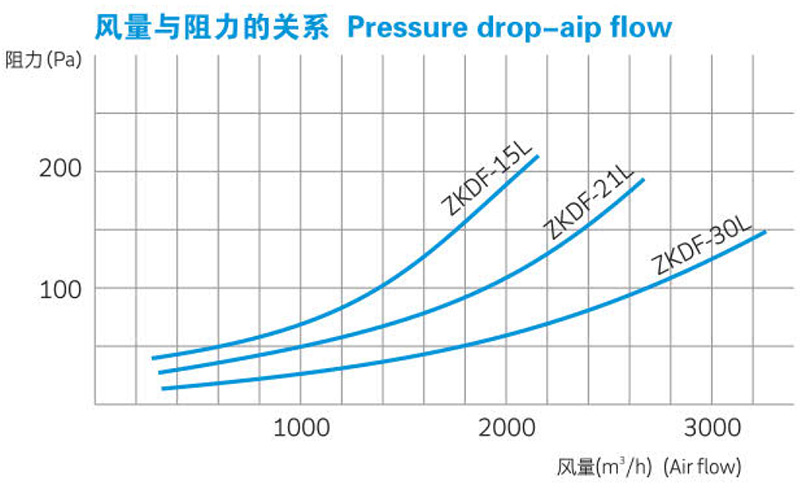

| 型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Initial resistance (Pa) | 效率(比色法) Efficiency (%) |
| ZKDF-7.3L | 295×295×295 | 730 | ≤125 | 85 |
| ZKDF-15L | 295×592×295 | 1500 | ≤125 | 85 |
| ZKDF-21L | 495×495×295 | 2100 | ≤125 | 85 |
| ZKDF-30L | 592×592×295 | 3000 | ≤125 | 85 |
